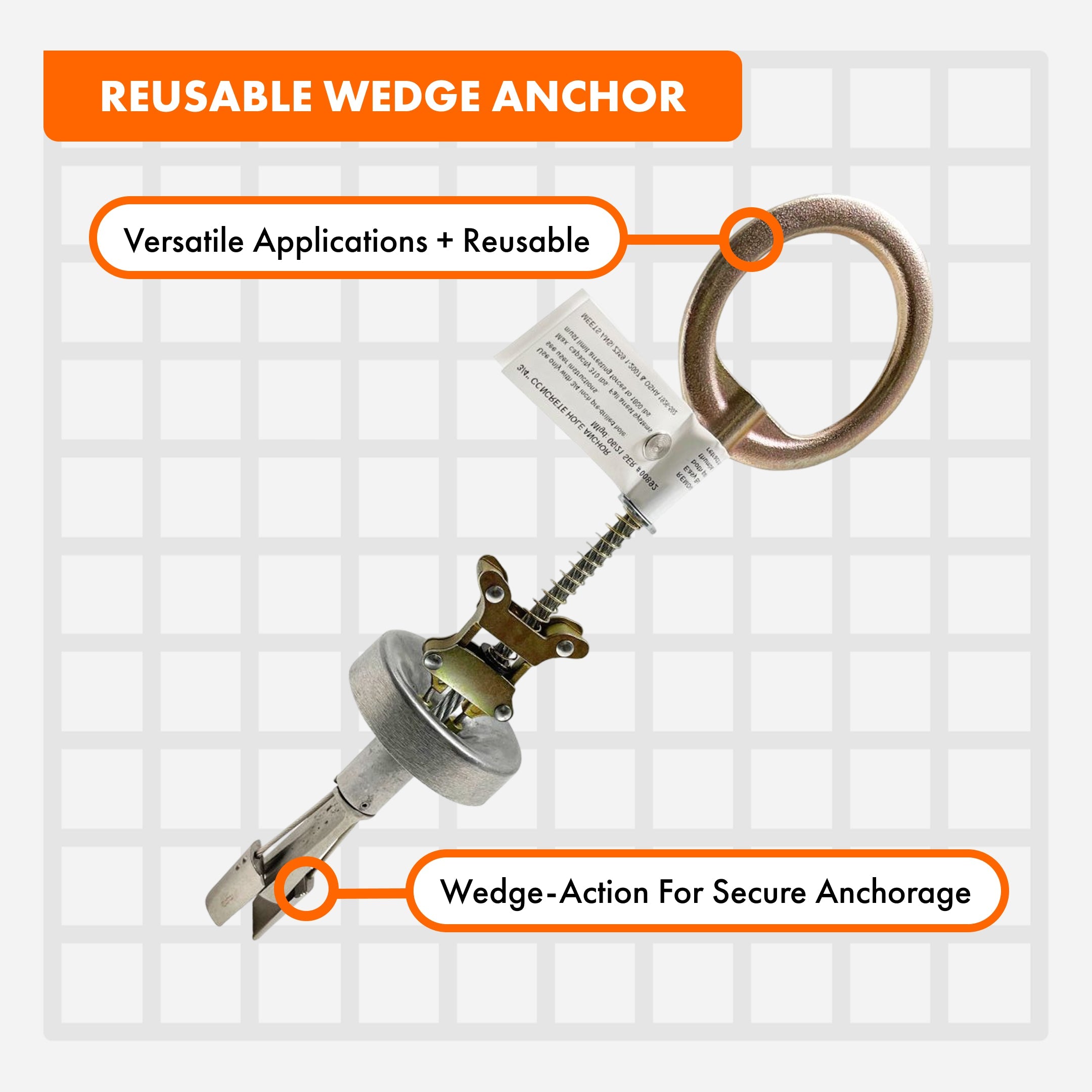

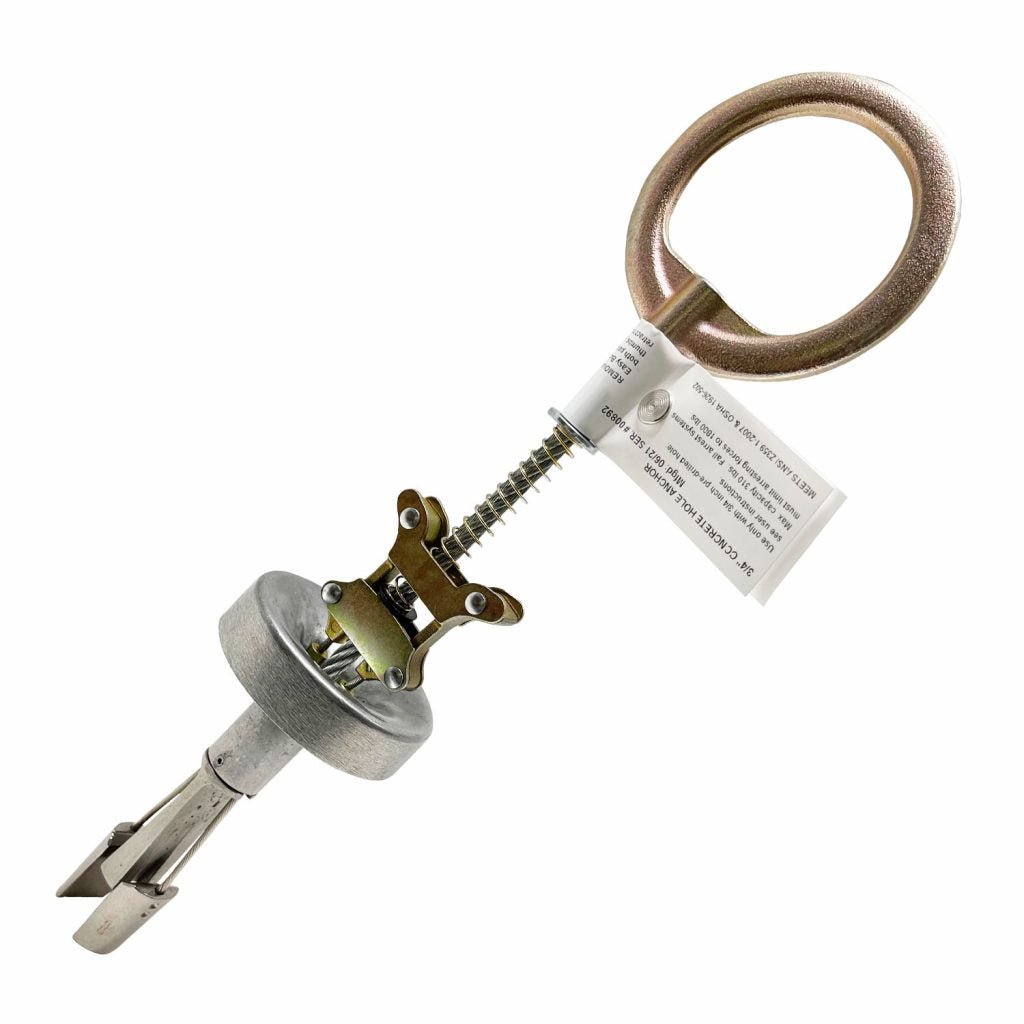

3/4” Reusable Concrete Wedge Anchor 5000 lbs.
KEY FEATURES
- 5,000 lb rated strength – Engineered for secure fall protection tie-offs and heavy-duty loads
- Reusable design – Can be installed, removed, and re-installed across multiple jobs for cost and time savings
- Wedge-action expansion – Grips concrete securely for reliable anchorage
- Versatile applications – Ideal for temporary or phased work, maintenance, inspections, and retrofit projects
- Durable alloy steel construction – Long-lasting performance even in demanding jobsite conditions
The 3/4″ reusable concrete wedge anchor delivers dependable anchorage for fall protection systems and positioning tie-offs, rated for up to 5,000 lbs. Its reusable design allows crews to install, remove, and re-install the anchor across multiple jobs, saving time, reducing waste, and minimizing concrete repairs. The wedge-action mechanism ensures a secure hold in concrete, while durable alloy steel construction provides long-term reliability. Perfect for temporary tie-off points, maintenance, inspections, and phased construction projects, this anchor combines strength, flexibility, and efficiency for modern jobsite safety.
USER CAPACITY:
130 – 425 lbs. max
DESIGN:
- For temporary use in cured concrete walls and ceilings, anchor is capable of being installed on a concrete wall having minimum thickness of 5.9” through a predefined hole of 3/4” diameter with 3-1/2” min. hole depth.
- Easy to install on a concrete structure using a single hand.
- Features forged steel eye connection point
- Assembled with zinc plated alloy steel and stainless steel components
- Incorporates easy trigger for repeated use
LENGTH:
10.75′′ overall length
MATERIAL:
Steel body
Stainless steel cable slider
Forged steel eye
Cable: Galvanized steel 0.24” diameter
MINIMUM BREAKING STRENGTH:
5000 lbs.
CONFORM TO NORM:
Meets OSHA 1926-502, ANSI Z359.1, ANSI A10.32.
WEIGHT:
0.8 lbs. ± 0.02 lbs.
