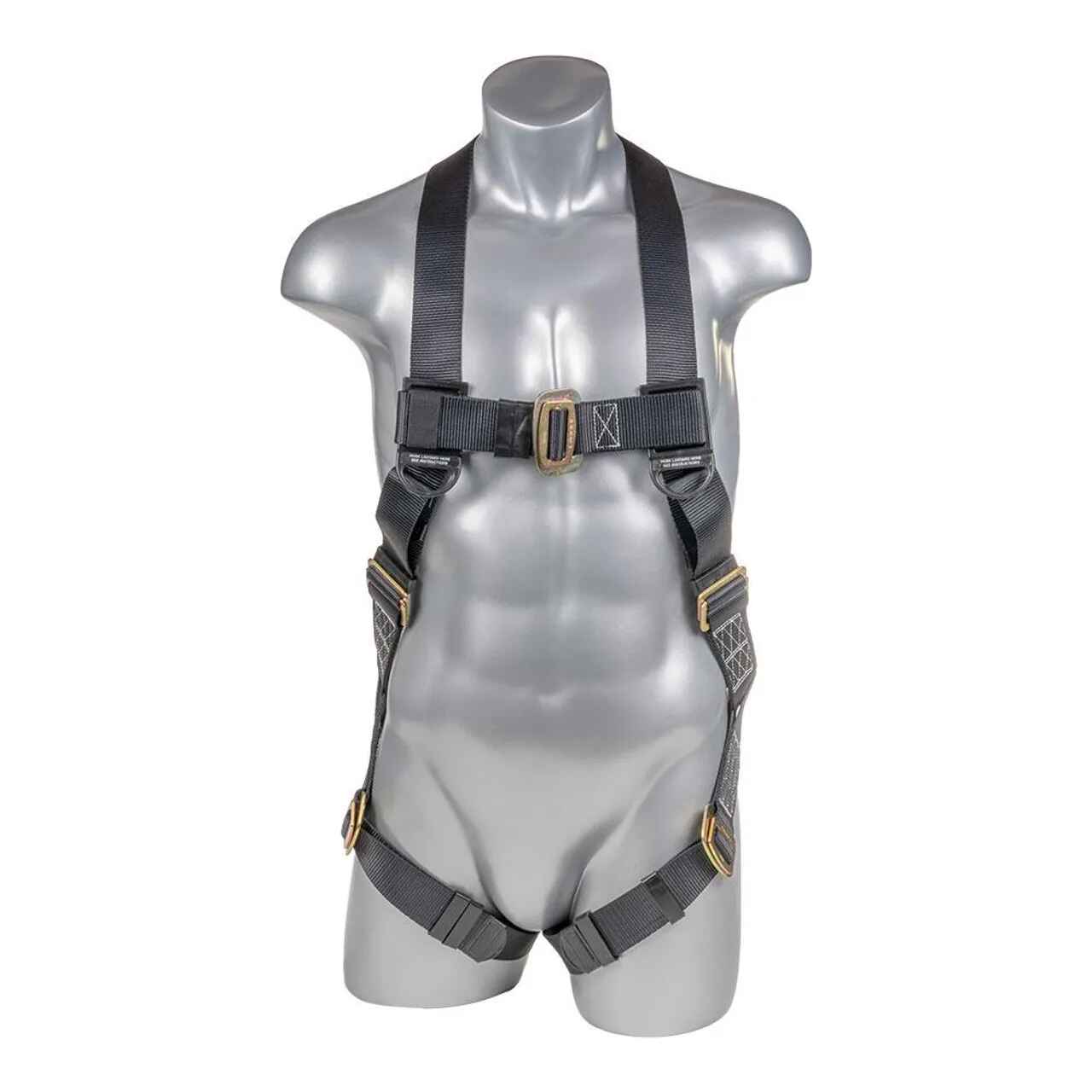

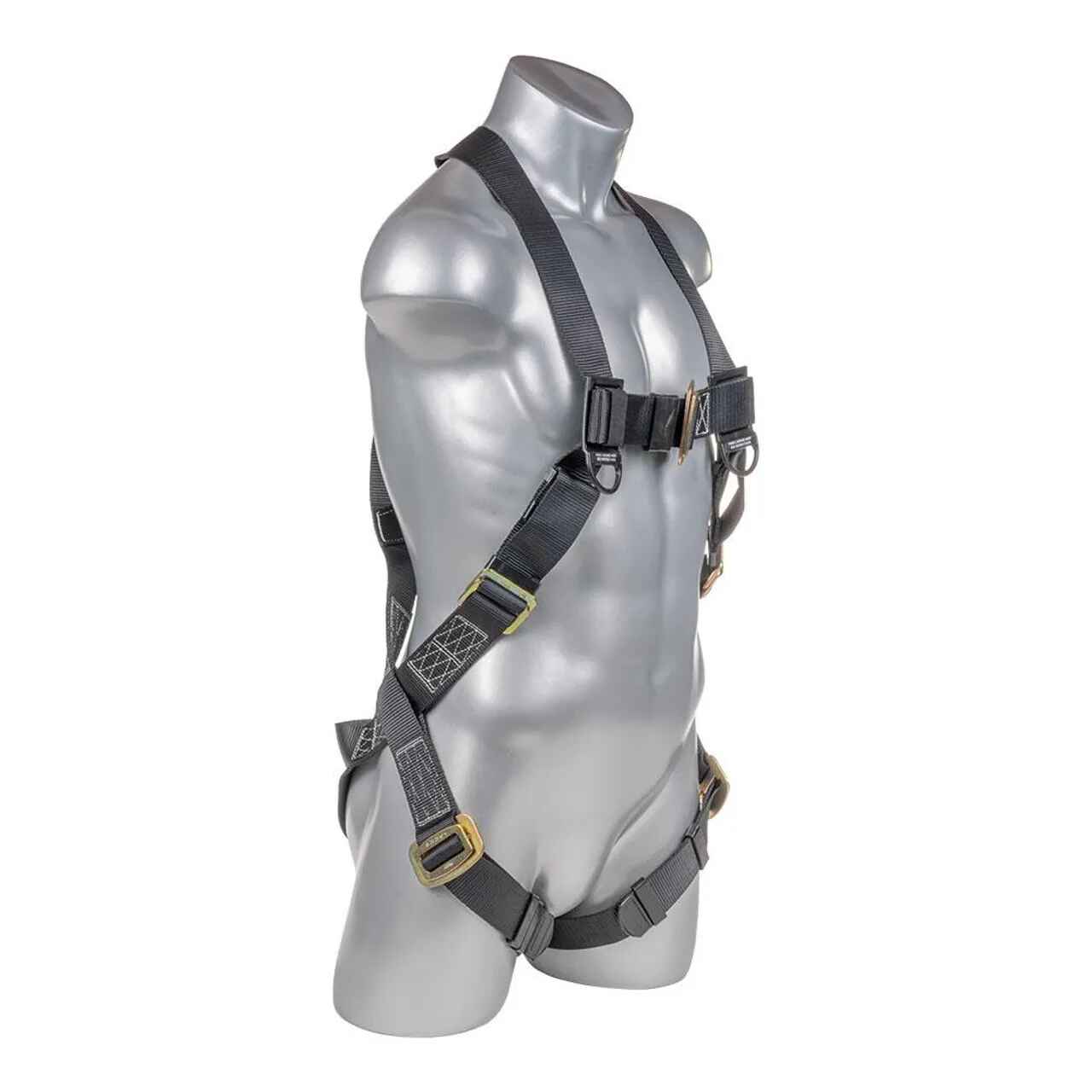

Construction Safety Harness 5 Point, Pass-Thru Legs, Back D-Ring

Full body harness with 5 point adjustment, Dorsal D-ring, Pass through leg straps. Fall indicators. Universal size. Meets or Exceeds ANSI Z359.11-2014. A10.32-2012.

Key Features

USER CAPACITY:

• 130 – 310 lbs. (59 -140 kg)

DESIGN:

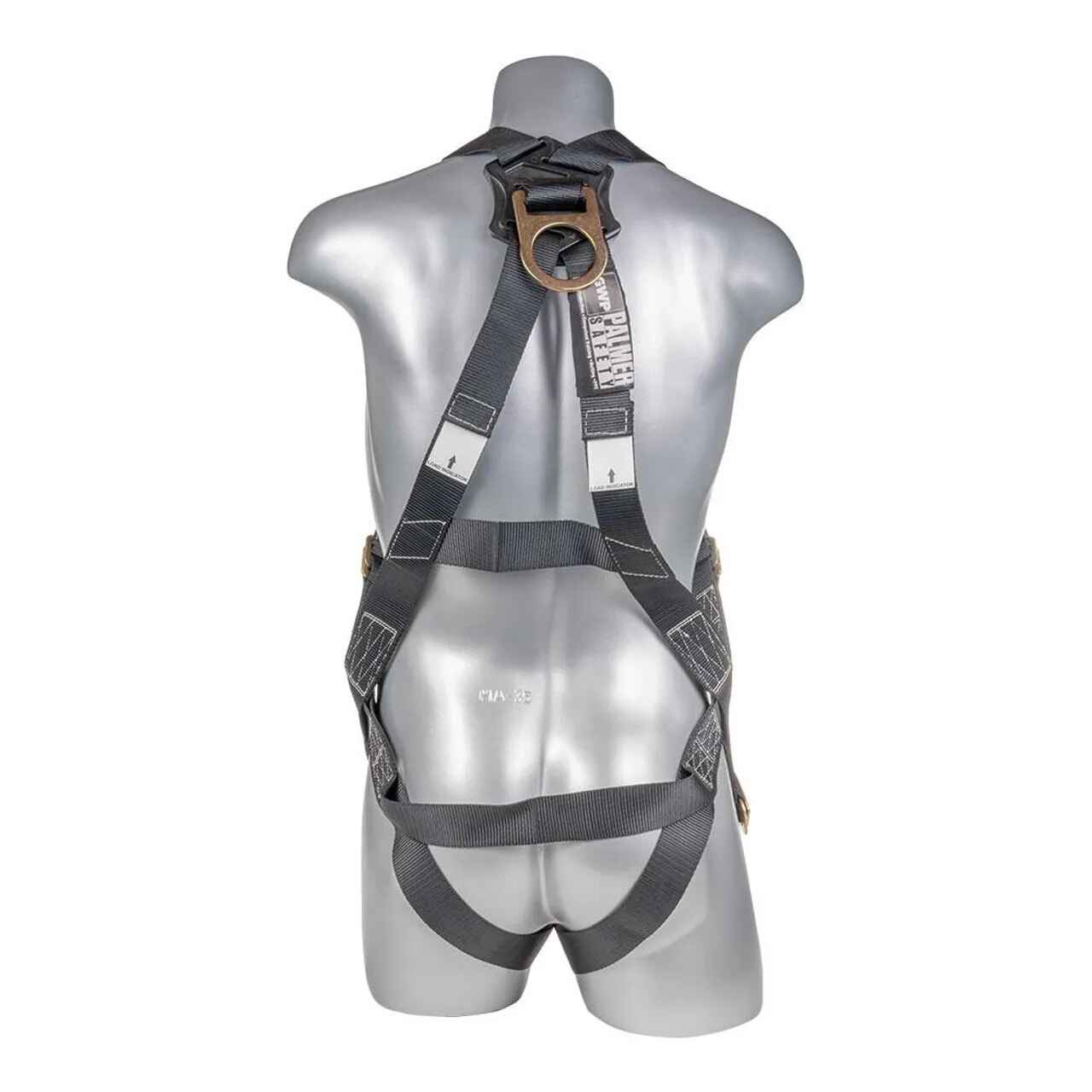

• Dorsal D-ring for fall arrest.
• Adjustable Shoulder straps.
• Adjustable leg straps.

WEBBING:

• Material: Polyester
• Width: 1.73 in. ± 0.04 in.
• Breaking Strength: 5000 lbs.

STITCHING THREAD:

• Material: High-tenacity polyester

METAL COMPONENTS:

• Material: Alloy Steel
• Finish: Silver or Golden Yellow Galvanized

VITAL TEST COMPLIANCE:

• Static Strength: 3600 lbs. for 1 Minute
• Dynamic performance: Free fall from 6 feet height done to a test dummy weighing 220.46 lbs. at dorsal attachment element. Harness should not release the dummy for 5 minutes (Retention time).

WEIGHT OF HARNESS:

• 2.88 lbs. ± 0.02 lbs.
