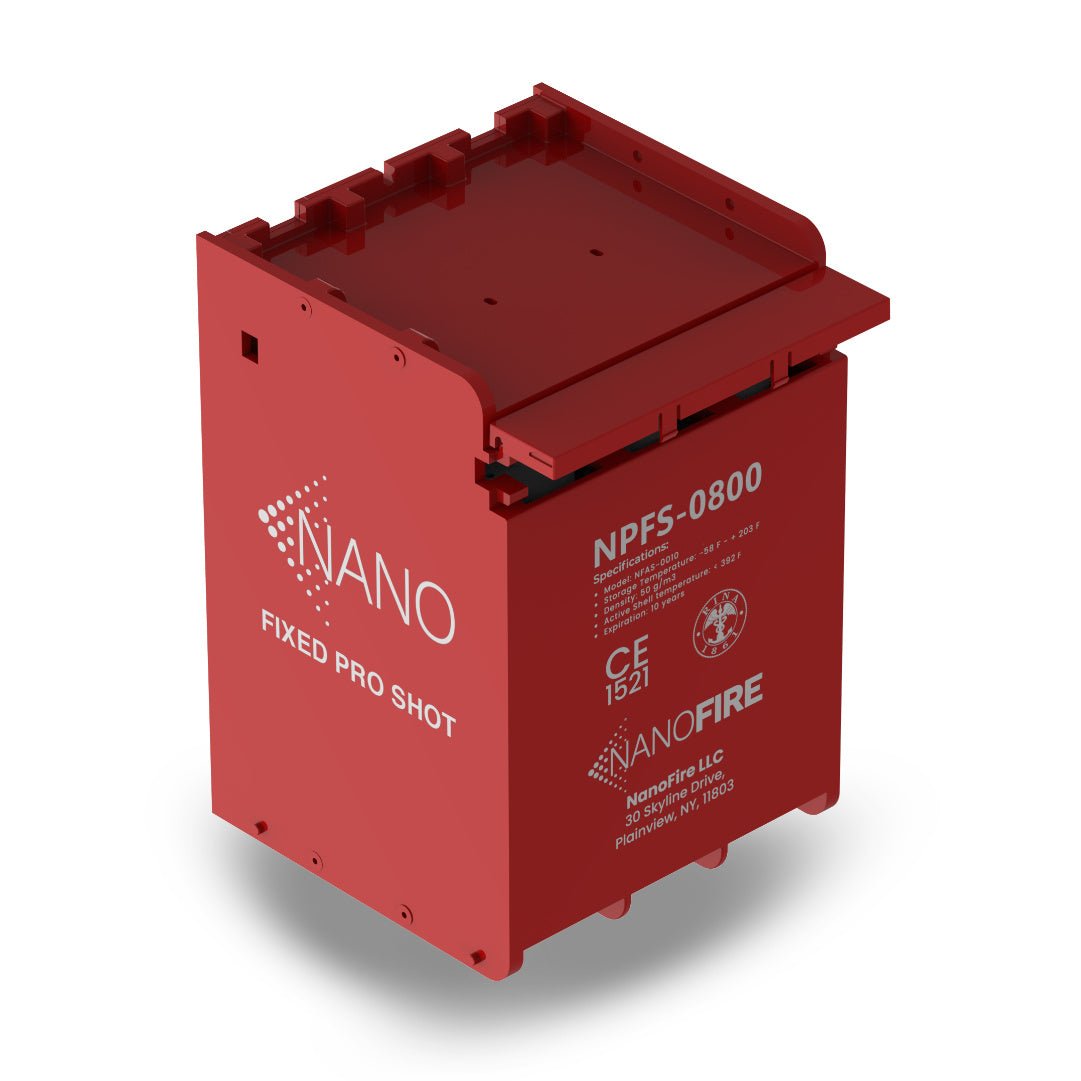

NANOSHOT PRO 800 FIXED aerosol fire suppression system

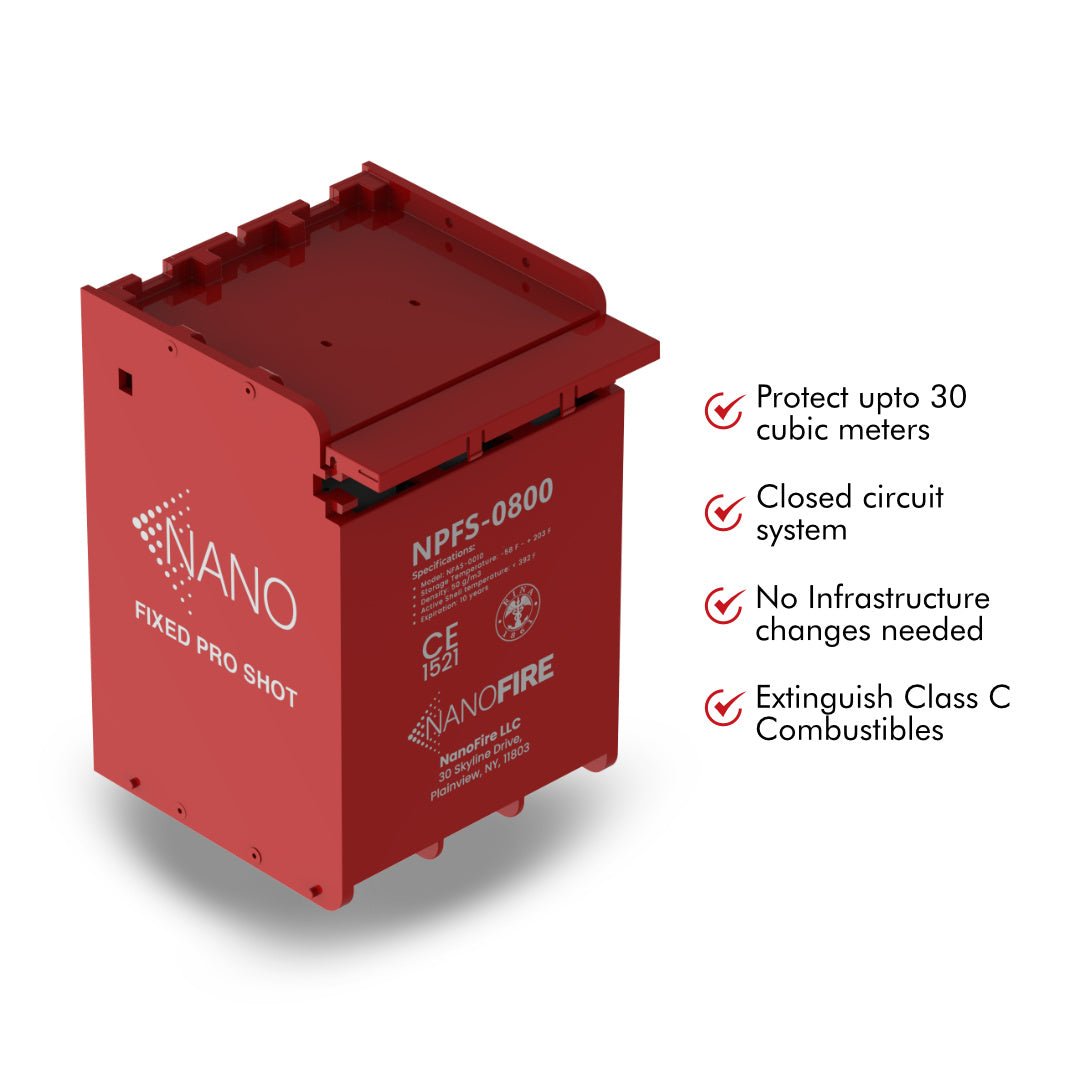

The Nano Pro Fixed 800 is the largest part of the NanoFire all-in-one Pro Fixed fire suppression system. The Nano Pro Fixed 800 unit can protect a massive 30 meters cubed and be installed into any existing area you want to protect with zero infrastructure changes needed.
- To be installed in enclosed areas such as generator rooms, data centers or equipment rooms.
- Can extinguish Class C Combustibles such as diesel and heavy oils.
- Leaves no trace or residue once discharged and does zero damage to electronic devices and equipment.
- Comes with a service life of either of 6 years
- Operates in temperatures of 57 °C to 260 °C (135°F to 500°F).
- Great fire suppression system for remote areas
Specifications

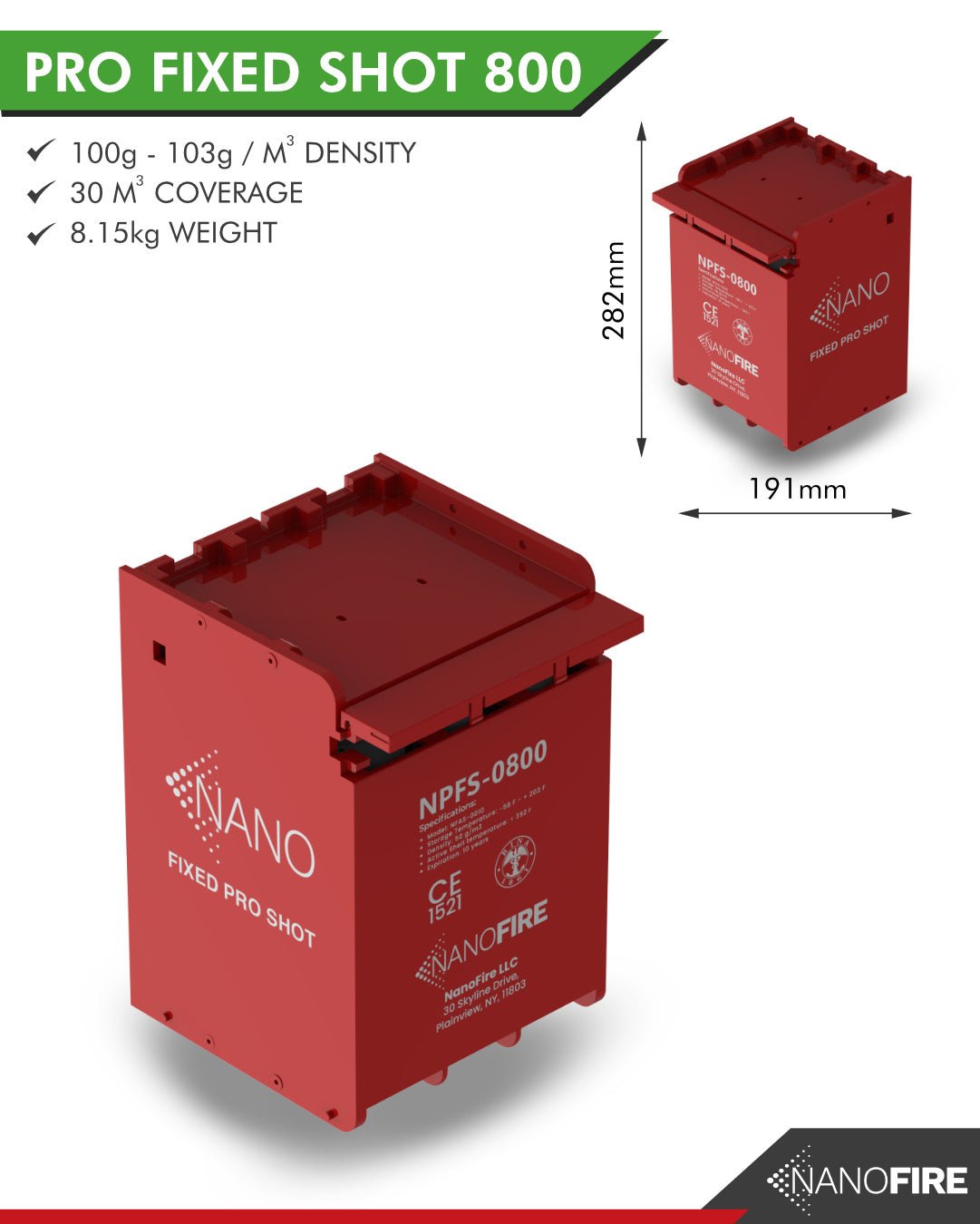

SPECIFICATIONS AND SIZES:
Size: 191mm x 186mm x 282mm
Weight: 8.15kg
Fire extinguisher density: 100g / ㎥ - 130g / ㎥
HOW IT WORKS:
- The Nano Pro Fixed System consists of 2 parts.
- The first part is the detection and controller component. This is either the NPC-10 Electric Control box and/or the NPC-10 Thermal actuated Control System.
- The second part is where the magic happens. The NPFS-15, NPFS-50, NPFS-500, NPFS-800 are different sized fixed fire extinguishers that connect to the control boxes.
- The control box will detect a fire and automatically discharge the necessary Pro Fixed fire extinguishers.
You can connect up to 6 of the NPFS extinguishers to one control box. And once connected, these systems are closed circuits, which requires no electricity to run.
AUTOMATIC FIRE DETECTION WITH NO ELECTRICITY
The Pro Fixed system can use a detect and control unit that does not require any electricity or maintenance. Making it the perfect system for remote or unmanned areas.
INSTALL WITH ZERO INFRASTRUCTURE CHANGES
The Pro Fixed system requires zero infrastructure changes or an additional ‘fire room’ to store the aerosol. Everything needed is contained in the components. Install into already built rooms without changing your room design.
EXCELLENT FOR ANY ELECTRONIC EQUIPMENT PROTECTION
The Pro Fixed System, uses the NanoFire Aerosol which leaves no trace, and does not damage any electronics or wires. This makes it the preferred choice for any electronics that need fire protection.
DISCHARGE SAFELY AROUND HUMANS
The Pro Fixed system, like all the NanoFire products uses a non toxic, environmentally friendly fire suppression formula. You can discharge the device in the same area as humans without effecting their lives or breathing.
APPLICATIONS:
The Pro Fixed system is built to protect large areas, where valuable equipment and machinery are located.
The Pro fixed system can be installed without infrastructure changes and takes up minimal space once installed making it a great option when you do not have a fire room.
It uses the Nanofire Aerosal which leaves no trace, residue or damage to objects or people including electronics, making it viable in any heavily manned or electronics environment.
For these reasons, there are a few key areas the Pro Fixed system can be installed:
Power industry: Cable tunnel, cable trench, generator room and substation
Communication industry: Communication machine room, communication base station and electronic computer room
Petrochemical industry: Power transformation and distribution room, high and low voltage distribution cabinet, switch cabinet and LCP cabinet
Storage: Libraries, archives, self storage,
Transport: Shipping containers, cargo vessels, truck transport
Buildings: High-rise civil buildings, hospitals, schools
The most dynamic fire suppression technology on the market
Patented Aerosol Formula
Nanofire technology interrupts the fire's chemical chain reaction.
It does not remove the oxygen from the air, and leaves no residue so is considered a clean agent.
When the Nanofire unit is discharged, the pyrotechnic agent reacts with the chemical agent. This produces an environmentally friendly and human safe nano particle. The result is a fine mist like gas.
Each NanoFire product is a self contained unit. Making any of the products ‘plug and play’
Patented Aerosol Formula
Nanofire technology interrupts the fire's chemical chain reaction.
It does not remove the oxygen from the air, and leaves no residue so is considered a clean agent.
When the Nanofire unit is discharged, the pyrotechnic agent reacts with the chemical agent. This produces an environmentally friendly and human safe nano particle. The result is a fine mist like gas.
Each NanoFire product is a self contained unit. Making any of the products ‘plug and play’
Electronic Friendly
Nanofire technology once discharged leaves no residue or damage to electronics or wiring.
Making it a perfect solution for protecting all your valuable electronic enclosures, like server rooms, vehicles, and batteries.
Non Toxic
The fire suppression technology used in NanoFire's products are all nontoxic and non-pressurized.
Humans can inhale the vapor with no effect on their health and will be able to function as normal.
This feature gives first responders the option to discharge when someone is in the vicinity and in potential danger.
